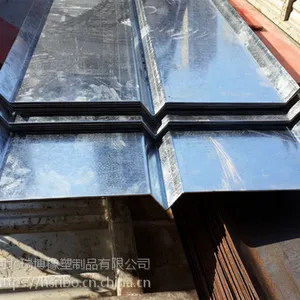

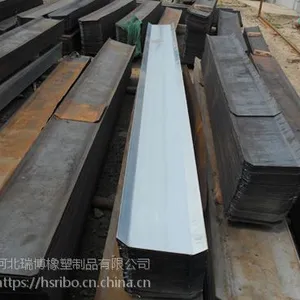

钢板止水带即在浇筑下层混凝土时，预埋300mmx3mm的钢板，其中有10-15cm的上部露在外面，在下次再浇筑混凝土时把这部分的钢板一起浇筑进去，起到阻止外面的压力水渗入的作用。一般钢板止水带是采用冷轧板作为母材，因为冷板厚度能够均匀，热板一般厚度达不到均匀的程度，厚度一般为2毫米或者3毫米，长度一般加工成3米长或者6米长，一般为三米好运输。止水钢板对焊接节点要求较高，

In the plate strip pouring bottom concrete, pre buried steel plate of 300mmx3mm, including the upper portion of the 10-15cm exposed, this part of the steel pouring in together again during the pouring of concrete, to prevent the outside pressure of water infiltration effect. General plate sealing strip is made of cold rolled plate as a base material for cold plate thickness can be generally uniform, hot plate thickness is not up to the uniform degree of thickness is 2 mm or 3 mm in length, generally processed into 3 meters long or 6 meters long, three meters generally good transportation. The water stopping steel plate requires higher welding nodes,

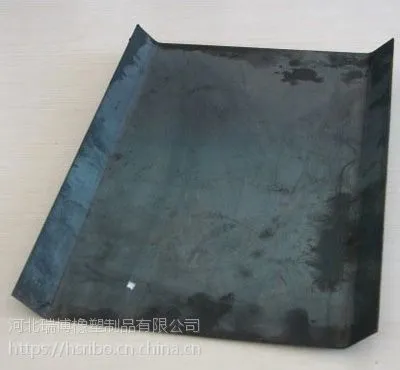

止水钢板焊接节点

Welded joint of water stopping steel plate

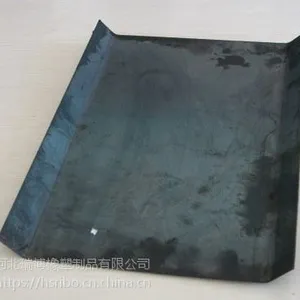

止水钢板焊接节点

Welded joint of water stopping steel plate

不能出现漏点，影响防水性能。

Leakage can not occur, affecting waterproof performance.

施工要点

地下止水钢板做法  131 6657 0832

Construction points

1、应尽力***止水钢板在墙体中线上；

1, should try to ensure that the steel plate in the wall of the center line;

2、两块钢板之间的焊接要饱满且为双面焊 ，钢板搭接不小于20mm；

The welding between the 2 and two steel plates should be full and double sided welding, and the steel plate shall be lapped not less than 20mm;

3、墙体转角处的处理，一、整块钢板弯折；二、丁字型焊接；三、7字型焊接。

3, the wall corner processing, one, the whole plate bending; two, T-shaped welding; three, 7 type welding.

4、止水钢板的支撑焊接，可以用小钢筋电焊在主筋上；

4 、 the support welding of water stopping steel plate can be welded with small steel bars on the main reinforcement;

5、止水钢板穿过柱箍筋时，可以将所穿过的箍筋断开，制作成开口箍，电焊在钢板上。

5. When the water stopping steel plate passes through the column hoop, the hoop hoop which is crossed can be broken and made into an opening hoop, and the electric welding is arranged on the steel plate.

6、止水钢板的“开口”朝迎水面。

6. The opening of the water stop steel plate faces the water surface.
